org.melati.poem
Class TableInfoTable

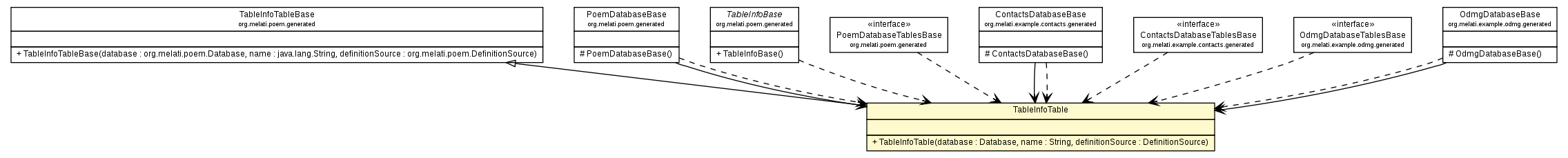

Package class diagram package TableInfoTable
java.lang.Object
  extended by org.melati.poem.JdbcTable
      extended by org.melati.poem.PoemTable
          extended by org.melati.poem.generated.TableInfoTableBase
              extended by org.melati.poem.TableInfoTable
All Implemented Interfaces:
Selectable, Table

public class TableInfoTable
extends TableInfoTableBase

A Table which holds information about all Tables in the Database. If a database does not contain a table called tableinfo it will be created during the unification phase of startup. see Database#unifyWithDB Note that when overriding you need to override defaultTableInfoFor. Melati POEM generated, programmer modifiable stub for a TableInfoTable object.

Description: Configuration information about a table in the database.

Field summary for SQL table TableInfo
NameTypeDescription
id Integer The Table Row Object ID
name String A code-name for the table
displayname String A user-friendly name for the table
description String A brief description of the table's function
displayorder Integer A rank determining where the table appears in the list of all tables
defaultcanread Capability The capability required, by default, for reading the table's records
defaultcanwrite Capability The capability required, by default, for updating the table's records
defaultcandelete Capability The capability required, by default, for deleting the table's records
cancreate Capability The capability required, by default, for creating records in the table
cachelimit Integer The maximum number of records from the table to keep in the cache
seqcached Boolean Whether the display sequence for the table's records is cached
category TableCategory Which category the table falls into

Generator
org.melati.poem.prepro.TableDef#generateTableMainJava

Constructor Summary
TableInfoTable(Database database, String name, DefinitionSource definitionSource)
          Constructor.

Method Summary
protected  TableInfo defaultTableInfoFor(Table table)
          Create a TableInfo of the correct type for our DB.

Methods inherited from class org.melati.poem.generated.TableInfoTableBase
_newPersistent, defaultCacheLimit, defaultCategory, defaultDescription, defaultDisplayName, defaultDisplayOrder, defaultRememberAllTroids, getCachelimitColumn, getCancreateColumn, getCategoryColumn, getDefaultcandeleteColumn, getDefaultcanreadColumn, getDefaultcanwriteColumn, getDescriptionColumn, getDisplaynameColumn, getDisplayorderColumn, getIdColumn, getNameColumn, getPoemDatabaseTables, getSeqcachedColumn, getTableInfoObject, getTableInfoObject, init

Methods inherited from class org.melati.poem.PoemTable
postInitialise

Methods inherited from class org.melati.poem.JdbcTable
_getColumn, addColumnAndCommit, addListener, appendWhereClause, cachedCount, cachedCount, cachedCount, cachedCount, cachedCount, cachedExists, cachedSelection, cachedSelectionField, cachedSelectionType, canDeleteColumn, canReadColumn, canSelectColumn, canWriteColumn, clearColumnInfoCaches, cnfWhereClause, cnfWhereClause, columns, columnWithColumnInfoID, count, count, count, count, countSQL, countSQL, create, create, createTableInfo, dbAddConstraints, dbModifyStructure, defaultOrderByClause, defineColumn, delete_unsafe, delete, deleteColumnAndCommit, deletedColumn, displayColumn, displayColumns, displayColumnsCount, dump, dump, dumpCacheAnalysis, equals, exists, exists, extrasCount, firstSelection, getCacheInfo, getCanCreate, getCategory, getColumn, getColumnsCount, getDatabase, getDbmsTableType, getDefaultCanDelete, getDefaultCanRead, getDefaultCanWrite, getDescription, getDetailDisplayColumns, getDetailDisplayColumnsCount, getDisplayName, getDsdName, getInfo, getMostRecentTroid, getName, getNextExtrasIndex, getObject, getObject, getRecordDisplayColumns, getRecordDisplayColumnsCount, getSearchCriterionColumns, getSearchCriterionColumnsCount, getSummaryDisplayColumns, getSummaryDisplayColumnsCount, getTableInfo, hashCode, invalidateTransactionStuffs, load, newPersistent, notifyColumnInfo, notifyTouched, primaryCriterionColumn, quotedName, readLock, referencesTo, referencesTo, rememberAllTroids, selection, selection, selection, selection, selection, selection, selectionSQL, serial, setCacheLimit, setDisplayColumn, setSearchColumn, setTableInfo, tableInfoID, toString, trimCache, troidColumn, troidFor, troidSelection, troidSelection, troidSelection, uncache, unifyWithColumnInfo, unifyWithDB, whereClause, whereClause, writeDown

Methods inherited from class java.lang.Object
clone, finalize, getClass, notify, notifyAll, wait, wait, wait


Constructor Detail

TableInfoTable

public TableInfoTable(Database database,
                      String name,
                      DefinitionSource definitionSource)
               throws PoemException
Constructor.

Parameters:
database - the POEM database we are using
name - the name of this Table
definitionSource - which definition is being used
Throws:
PoemException - if anything goes wrong
Generator
org.melati.poem.prepro.TableDef#generateTableMainJava
Method Detail

defaultTableInfoFor

protected TableInfo defaultTableInfoFor(Table table)
Create a TableInfo of the correct type for our DB. NOTE you should override this if you extend TableInfo in your own db.

Parameters:
table - the Table to get metadata from.
Returns:
a new TableInfo Persistent
